Summit 18 Inch Outdoor ADA Refrigerator with Panel Ready Drawers

Elevate your outdoor living space with the Summit 18 Inch Outdoor Refrigerator ADA, featuring panel ready drawers for a seamless integration into your patio design. Keep your drinks and snacks cool and accessible while enjoying time outside with family and friends. Enjoy the luxury and convenience of an outdoor refrigerator, perfect for any outdoor entertainment area.

Features

• 18" wide drawer refrigerator
  Two-drawer design in a unique 18" width ideal for undercounter spaces
• Commercially approved
  ETL-S listed to NSF-7 standards for commercial use
• ADA compliant
  32” height allows for installation under lower ADA compliant counters

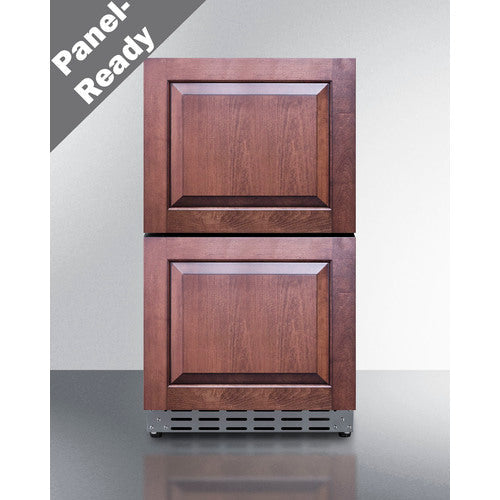

• Panel-ready drawer fronts
  Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry
• Built-in capable
  Front-breathing design allows the unit to be built-in under counters
• Stainless steel construction
  Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look
• Indoor/Outdoor compatible
  Durable, weatherproof construction designed to hold up to the elements
• Professional handles
  Stainless steel handles add style to any setting
• Frost-free
  No-frost operation for minimal user maintenance
• Interior lighting
  Soft LED lighting makes for easy viewing of each drawer’s contents
• Digital thermostat
  Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
• Digital display
  Large display allows for easy readability and unit control
• Temperature alarm
  Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
• Open drawer alarm
  Audible alarm sounds if the drawers are left open for more than five minutes
• Sabbath mode
  Optional feature disables alarms, interior light, and displays for up to 96 hours
• Drawer dividers
  Each drawer includes an adjustable divider to allow easier organization of your storage

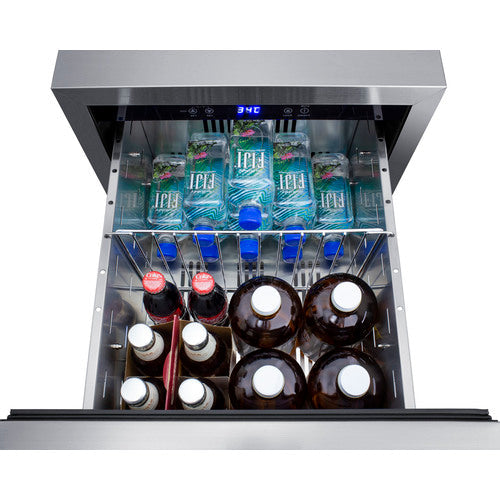

• Holds tall bottles
  Lower drawer has a 10.5" height to accommodate taller bottles as needed
• Right-angle plug
  Space-saving plug allows unit to sit flush against the wall
• Sealed back
  Ensures easier cleanup and a better fit with no exposed coils in the rear
• Fan-forced cooling
  Provides for efficient, even cooling of the entire unit
• Soft-close drawers
  Anti-slam drawers allow you to gently push to close
• Anti-tip bracket
  Included bracket recommended for installation to help prevent tipping for added safety
• Fully finished cabinet
  Allows the unit to be used freestanding
• 100% CFC free
  Environmentally friendly design with no ozone-damaging chemicals
• CARB Compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

• Capacity: 3.4 cu.ft. (96 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel / Panel-Ready
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 259.0 kWh/year
• Amps: 1.25
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 100.0 lbs. (45 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Sabbath Mode: Yes
• Door Swing: Drawer
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.23 oz.
• High Side PSI: 150.0
• Low Side PSI: 50.0
• Level Legs Qty: 4
• Interior Light: Yes
• Interior Drawers: Yes
• Interior Drawers Qty: 2
• Temperature Range: 34 to 65°F

Dimensions

Drawer Dimensions

• Interior Height 1: 8 3/4 inches
• Interior Width 1: 12 3/4 inches
• Interior Depth 1: 17 1/2 inches
• Interior Height 2: 10 1/2 inches
• Interior Width 2: 12 3/4 inches
• Interior Depth 2: 17 1/2 inches

Compressor Step Dimensions

• Compressor Step Height: 5 3/4 inches
• Compressor Step Width: 12 3/4 inches
• Compressor Step Depth: 4 3/4 inches
