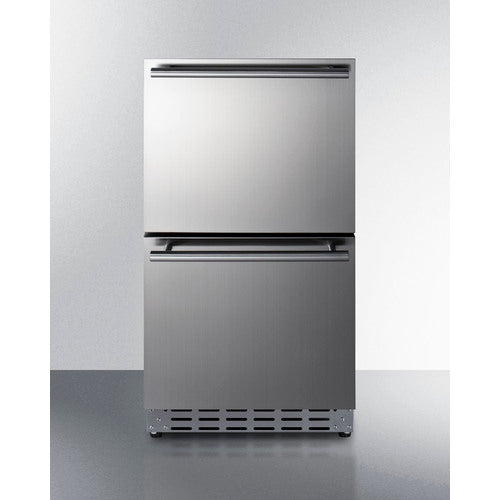

Summit 18 Inch Outdoor ADA Refrigerator with Drawers

Elevate your outdoor entertaining game with the Summit 18 Inch Outdoor Refrigerator ADA. Designed with ADA-compliant dimensions, this spacious and durable fridge keeps your drinks and snacks chilled to perfection. Enjoy convenience and style while entertaining with this must-have outdoor appliance.

Features

• 18" wide drawer refrigerator
  Two-drawer design in a unique 18" width ideal for undercounter spaces
• ADA compliant
  32” height allows for installation under lower ADA compliant counters
• Commercially approved
  ETL-S listed to NSF-7 standards for commercial use
• Panel-ready drawer fronts
  Drawers can be customized with overlay panels sized (at 14" H x 17.7" W at 3/4" thick) to match or accent existing cabinetry
• Built-in capable
  Front-breathing design allows the unit to be built-in under counters
• Stainless steel construction
  Complete 304 grade stainless steel inside and out to ensure lasting durability with a luxurious look
• Indoor/Outdoor compatible
  Durable, weatherproof construction designed to hold up to the elements
• Professional handles
  Stainless steel handles add style to any setting
• Frost-free
  No-frost operation for minimal user maintenance
• Interior lighting
  Soft LED lighting makes for easy viewing of each drawer’s contents
• Digital thermostat
  Electronic controls for seamless temperature management, with readout in either Celsius or Fahrenheit
• Digital display
  Large display allows for easy readability and unit control
• Temperature alarm
  Alarm alerts you if the unit’s temperature goes beyond recommended high and low temperature ranges
• Open drawer alarm
  Audible alarm sounds if the drawers are left open for more than five minutes
• Sabbath mode
  Optional feature disables alarms, interior light, and displays for up to 96 hours
• Drawer dividers
  Each drawer includes an adjustable divider to allow easier organization of your storage
• Holds tall bottles
  Lower drawer has a 10.5" height to accommodate taller bottles as needed
• Right-angle plug
  Space-saving plug allows unit to sit flush against the wall
• Sealed back
  Ensures easier cleanup and a better fit with no exposed coils in the rear
• Fan-forced cooling
  Provides for efficient, even cooling of the entire unit
• Soft-close drawers
  Anti-slam drawers allow you to gently push to close
• Anti-tip bracket
  Included bracket recommended for installation to help prevent tipping for added safety
• Fully finished cabinet
  Allows the unit to be used freestanding
• 100% CFC free
  Environmentally friendly design with no ozone-damaging chemicals
• CARB Compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

• Capacity: 3.4 cu.ft. (96 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel / Panel-Ready
• Cabinet: Stainless Steel
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 259.0 kWh/year
• Amps: 1.25
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 100.0 lbs. (45 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Sabbath Mode: Yes
• Door Swing: Drawer
• Thermostat Type: Digital
• Fan Type: Interior and Exterior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.23 oz.
• High Side PSI: 150.0
• Low Side PSI: 50.0
• Level Legs Qty: 4
• Interior Light: Yes
• Interior Drawers: Yes
• Interior Drawers Qty: 2
• Temperature Range: 34 to 65°F

Dimensions

Drawer Dimensions

• Interior Height 1: 8 3/4 inches
• Interior Width 1: 12 3/4 inches
• Interior Depth 1: 17 1/2 inches
• Interior Height 2: 10 1/2 inches
• Interior Width 2: 12 3/4 inches
• Interior Depth 2: 17 1/2 inches

Compressor Step Dimensions

• Compressor Step Height: 5 3/4 inches
• Compressor Step Width: 12 3/4 inches
• Compressor Step Depth: 4 3/4 inches
