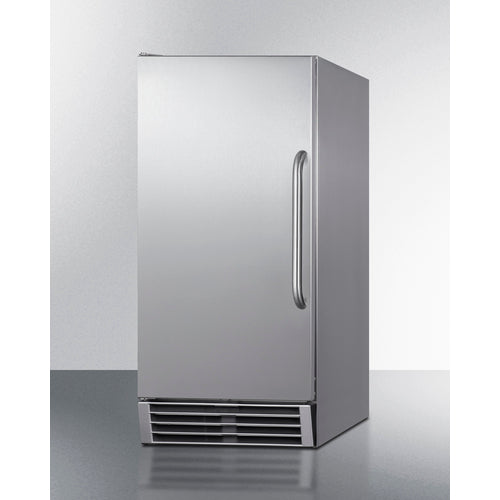

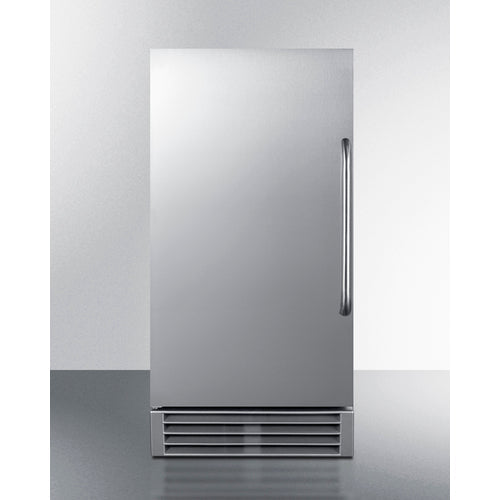

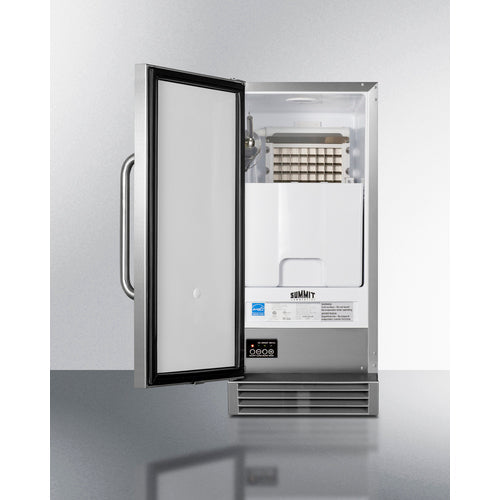

Summit 15 Inch Outdoor Ice Maker with Solid Door

Introducing the Summit 15 Inch Built-In Outdoor 50 lb. Clear Icemaker! Easily create ice for all your outdoor gatherings with this convenient and durable icemaker. With a 50 lb. capacity and clear ice production, you'll never run out of ice again. Perfect for poolside parties, picnics, and more!

Features

• Commercially approved
  ETL-S listed to NSF-12 commercial standards

• Weatherproof design
  Durable stainless steel construction for safe installation in outdoor spaces

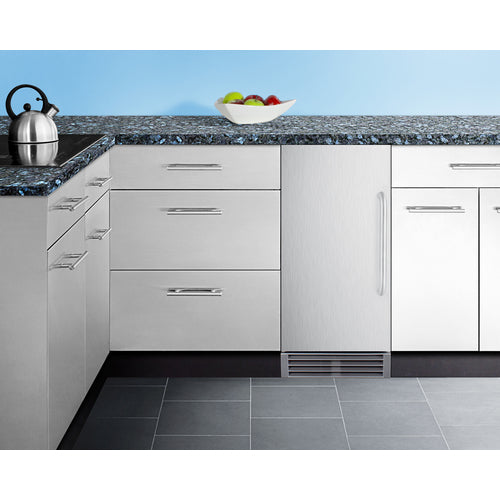

• Built-in capable
  Make the best use of space by installing your icemaker under the counter

• 50 lb. production capacity
  Can make up to 50 lbs. of clear ice cubes in a day cycle and store up to 25 lbs. (Note: ice is produced in sheets and can easily be broken into cubes using the provided scoop.)

• ENERGY STAR certified commercial performance
  Efficient performance saves on energy use and costs

• Built-in pump
  Internal pump affords more flexibility in placing the unit

• Automatic defrost
  Reduced maintenance with auto defrost system

• Clear ice cube production
  Produces 7/8" x 7/8" x 7/8" clear ice cubes

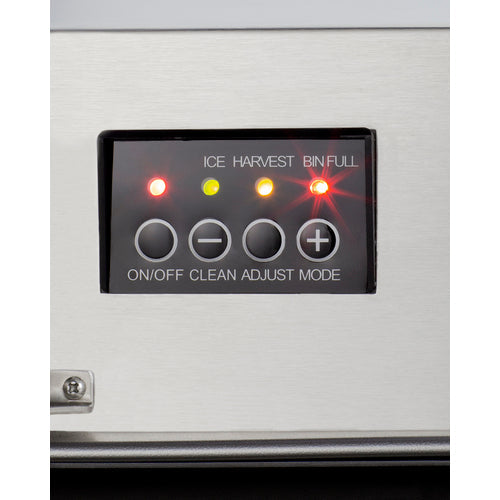

• Touch control panel
  Provides easy operation of the unit with indicator lights for each stage of the production process

• Reversible stainless steel door
  User-reversible door swing for flexible placement

• Professional towel bar handle
  A curved handle in brushed stainless steel offers an easy grip

• Insulated storage bin
  Ice stays solid longer in this cold-protected bin

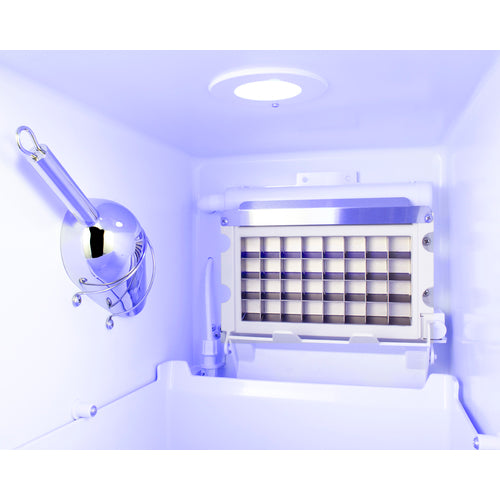

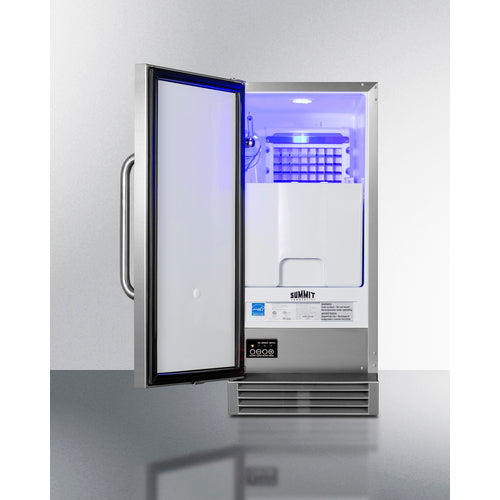

• Interior light
  Lighting in a soft blue hue for easy viewing of the interior

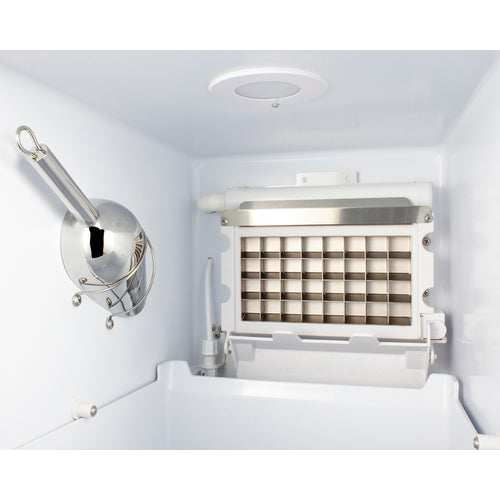

• Ice scoop included
  Interior wall includes brackets to hang for easy storage

• Fully finished stainless steel cabinet
  Allows the unit to be used freestanding

• Sealed back
  Space saving design for easier cleanability

• Leveling legs
  Four leveling legs help to keep the unit level on uneven surfaces

• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals

Specifications

• Defrost Type: Automatic

• Door: Stainless Steel

• Cabinet: Stainless Steel

• US Electrical Safety: UL

• Canadian Electrical Safety: ULC

• Sanitation: ETL-S

• Amps: 4.8

• Voltage/Frequency: 115 V AC / 60 Hz

• Weight: 100.0 lbs. (45 kg)

• Parts & Labor Warranty: 1 Year

• Compressor Warranty: 5 Years

• UPC: 761101067742

Icemaker Features

• Door Swing: LHD

• Reversible: Yes

• Drain Required: Yes

• Daily Ice Production: 50.0 lbs. (23 kg)

• Ice Storage Capacity: 25.0 lbs. (11 kg)

• Ice Shape: Cube

• Size of Cube: 7/8" x 7/8" x 7/8"

• Number of Ice Cube Sizes: 1

Refrigeration Details

• Fan Type: Exterior

• Refrigerant Type: R134a

• Refrigerant Amount: 3.88 oz.

• High Side PSI: 350.0

• Low Side PSI: 130.0

Dimensions

• Nominal Height: 33 Inches

• Height of Cabinet: 33 Inches

• Nominal Width: 15 Inches

• Width: 14 1/2 Inches

• Nominal Depth: 24 Inches

• Depth: 23 1/4 Inches

• Depth with Handle: 25 1/4 Inches

• Depth with Door at 90°: 36 3/4 Inches

Manuals

Summit Brochure

Summit Use and Care
