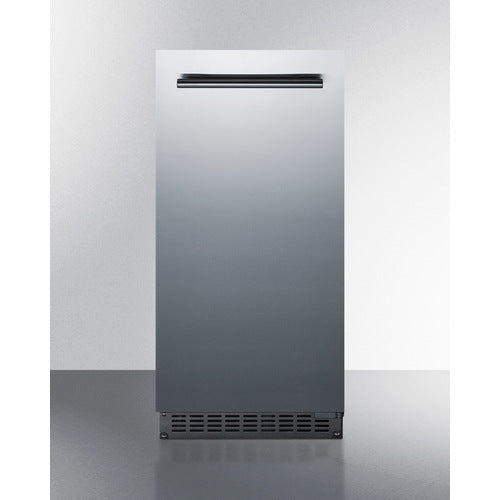

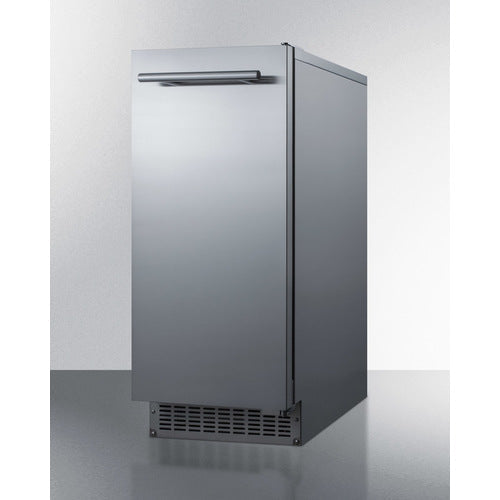

Summit 15 Inch Outdoor Ice Maker with Solid Door

This powerful and versatile icemaker from Summit boasts a 62 lb. capacity, making it perfect for both indoor and outdoor use. With its clear ice output, you can keep your drinks cool and refreshing all day long. Enjoy the convenience and reliability of the Summit 15 Inch 62 lb. Clear Outdoor/Indoor Icemaker.

Features

• Outdoor Clear Icemaker
  15" wide built-in undercounter icemaker produces 62 lbs. of clear gourmet ice cubes
• Commercially approved
  ETL-S listed to NSF-12 commercial standards for use in foodservice settings
• Weatherproof design
  Durable construction for safe installation in outdoor kitchens
• 62 lb. production capacity
  Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
• Built-in capable
  Make the best use of space by installing your icemaker under the counter and flush with other cabinets
• Stainless steel wrapped exterior
  Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

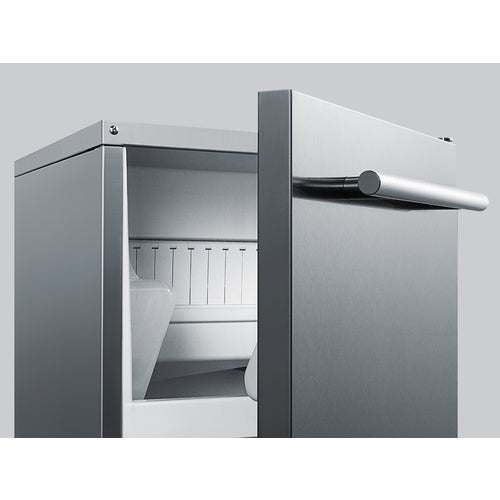

• Professional handle
  Horizontally mounted towel bar style handle in stainless steel

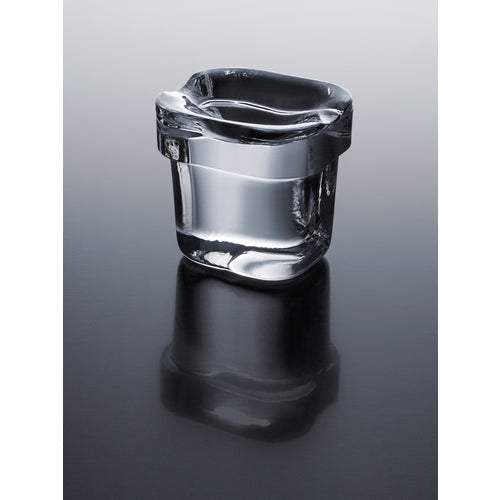

• Clear ice cube production
  Gourmet style rounded dice-style ice cubes
• Frost-free operation
  No-frost operation for minimum user maintenance
• Gravity drain setup
  Requires connection to gravity drain

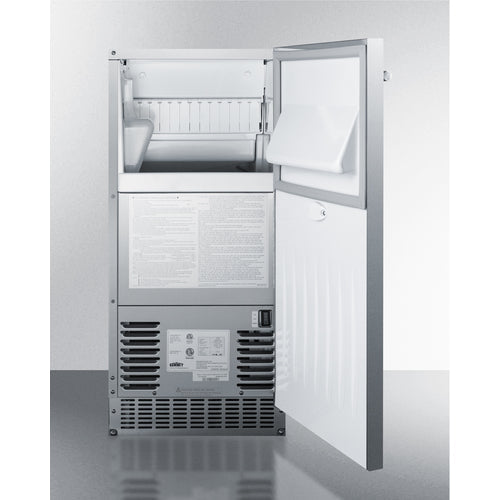

• Reversible door
  User-reversible door swing for flexible placement
• Standard water hookup
  Operates with a standard 1/4” OD water supply line
• Sealed back
  Space-saving design with easier cleanability
• Fully finished cabinet
  Allows the unit to be used freestanding

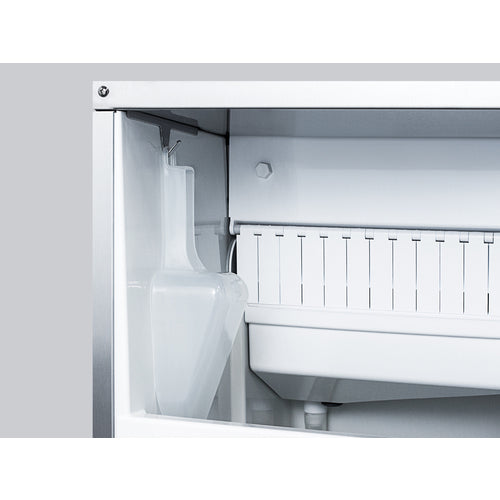

• Ice scoop included
  Interior wall includes hook to hang for easy storage
• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals

Specifications

• Capacity: 0.98 cu.ft. (28 L ≈ 0.99 cu.ft.)

• Defrost Type: Frost-Free

• Door: Stainless Steel

• Cabinet: Stainless Steel

• US Electrical Safety: ETL

• Canadian Electrical Safety: ETL-C

• Sanitation: ETL-S

• Amps: 4.0

• Voltage/Frequency: 115 V AC / 60 Hz

• Weight: 105.0 lbs. (48 kg ≈ 105.8 lbs)

• Parts & Labor Warranty: 1 Year

• Compressor Warranty: 5 Years

• UPC: 761101057088

Icemaker Features

• Door Swing: RHD

• Reversible: Yes

• Daily Ice Production: 62.0 lbs. (28 kg ≈ 61.7 lbs)

• Ice Storage Capacity: 26.0 lbs. (12 kg ≈ 26.5 lbs)

• Ice Shape: Top hat

• Size of Cube: 1 1/4" H x 1 1/8" W x 1 1/8" D

• Number of Ice Cube Sizes: 1

Refrigeration Details

• Fan Type: Exterior

• Refrigerant Type: R134a

• Refrigerant Amount: 7.4 oz.

• High Side PSI: 210.0

• Low Side PSI: 105.0

Dimensions

• Nominal Height: 34 Inches

• Height of Cabinet: 33 1/2 Inches

• Height to Hinge Cap: 33 5/8 Inches

• Nominal Width: 15 Inches

• Width: 14 7/8 Inches

• Nominal Depth: 23 Inches

• Depth: 22 5/8 Inches

• Depth with Handle: 24 1/2 Inches

• Depth with Door at 90°: 37 1/4 Inches
