Summit 15 Inch Outdoor Ice Maker with Panel Ready Solid Door

Introducing the Summit 15 Inch 62 lb. Clear Outdoor Icemaker - the perfect addition to your outdoor space! With its sleek design and powerful features, this icemaker can produce up to 62 pounds of clear, high-quality ice per day. Enjoy cold drinks and entertaining without the hassle of constantly refilling ice trays. Upgrade your outdoor hosting game with the Summit Icemaker today!

Features

• Outdoor Clear Icemaker
  15" wide built-in undercounter icemaker produces 62 lbs. of clear gourmet ice cubes
• Commercially approved
  ETL-S listed to NSF-12 commercial standards for use in foodservice settings
• Weatherproof design
  Durable construction for safe installation in outdoor kitchens
• 62 lb. production capacity
  Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
• Built-in capable
  Front-breathing design lets you make the best use of space by installing your appliance under the counter

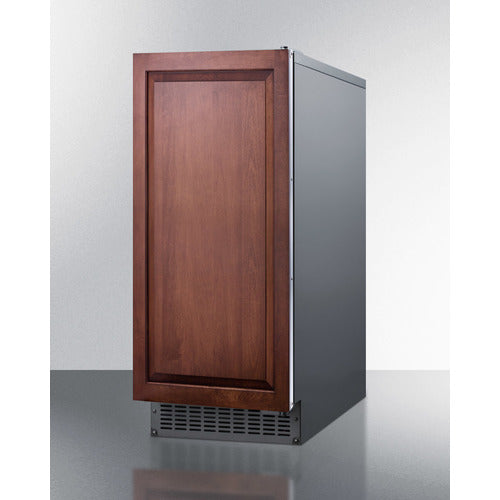

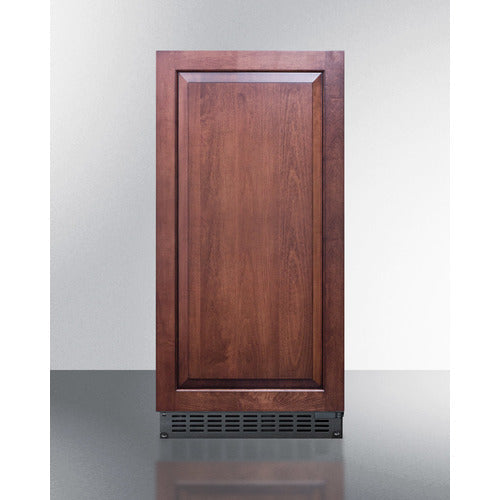

• Panel-ready door
  Integrated door frame accepts overlay panels for a customized look (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick)
• Stainless steel wrapped exterior
  Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

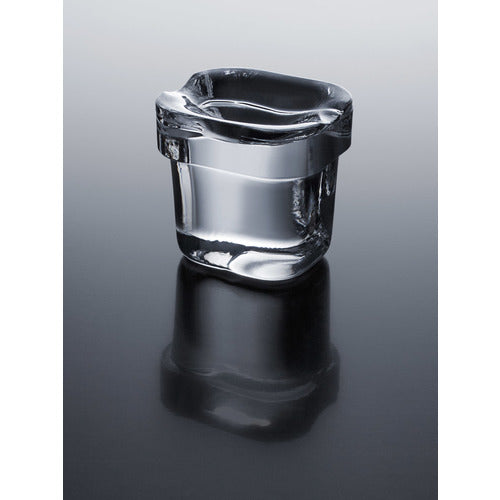

• Clear ice cube production
  Gourmet style rounded dice-style ice cubes
• Frost-free operation
  No-frost operation for minimum user maintenance
• Gravity drain setup
  Requires connection to gravity drain
• Factory-reversible door
  Unit ships RHD but can be ordered with a left hand door swing (option LHD); not field-reversible
• Standard water hookup
  Operates with a standard 1/4” OD water supply line
• Sealed back
  Space-saving design with easier cleanability
• Fully finished cabinet
  Allows the unit to be used freestanding
• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals

Specifications

• Capacity: 0.98 cu.ft. (28 L)

• Defrost Type: Frost-Free

• Door: Panel-Ready

• Cabinet: Stainless Steel

• US Electrical Safety: ETL

• Canadian Electrical Safety: ETL-C

• Sanitation: ETL-S

• Amps: 4.0

• Voltage/Frequency: 115 V AC / 60 Hz

• Weight: 105.0 lbs. (48 kg)

• Parts & Labor Warranty: 1 Year

• Compressor Warranty: 5 Years

• UPC: 761101061801

Icemaker Features

• Door Swing: RHD

• Reversible: Factory Reversible

• Daily Ice Production: 62.0 lbs. (28 kg)

• Ice Storage Capacity: 26.0 lbs. (12 kg)

• Ice Shape: Top hat

• Size of Cube: 1 1/4" H x 1 1/8" W x 1 1/8" D

• Number of Ice Cube Sizes: 1

Refrigeration Details

• Fan Type: Exterior

• Refrigerant Type: R134a

• Refrigerant Amount: 7.4 oz.

• High Side PSI: 210.0

• Low Side PSI: 102.0

Dimensions

• Nominal Height: 34.0" (86 cm)

• Height of Cabinet: 33.5" (85 cm)

• Height to Hinge Cap: 33.63" (85 cm)

• Nominal Width: 15.0" (38 cm)

• Width: 14.88" (38 cm)

• Nominal Depth: 23.0" (58 cm)

• Depth: 22.63" (57 cm)

• Depth with Door at 90°: 37.25" (95 cm)

Manuals

Summit Brochure

Summit Use and Care

Summit Integrated Frame

Summit Assembly Drawing
