Summit 24 Inch Outdoor ADA Refrigerator with Drawers

Introducing the Summit 24 Inch Outdoor ADA Refrigerator with Drawers - the perfect addition to your outdoor space! Designed with accessibility in mind, this refrigerator meets ADA standards. The durable stainless steel construction makes it ideal for outdoor use, while the convenient drawers provide easy access to your chilled items.

Enjoy the ultimate outdoor gathering with this must-have appliance!

Features

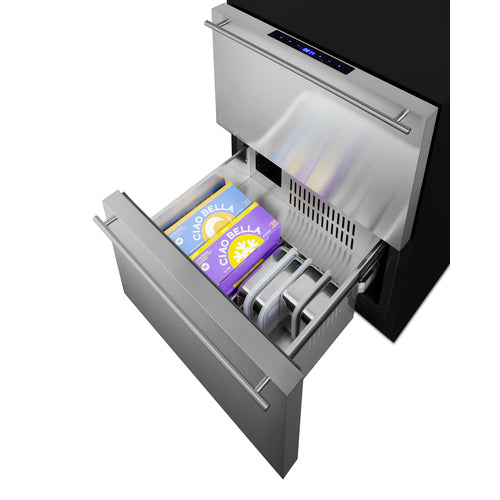

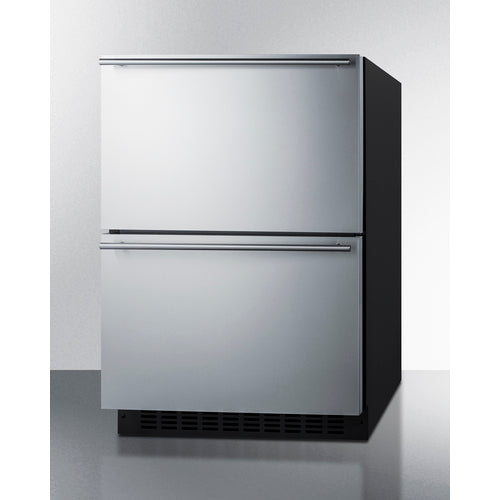

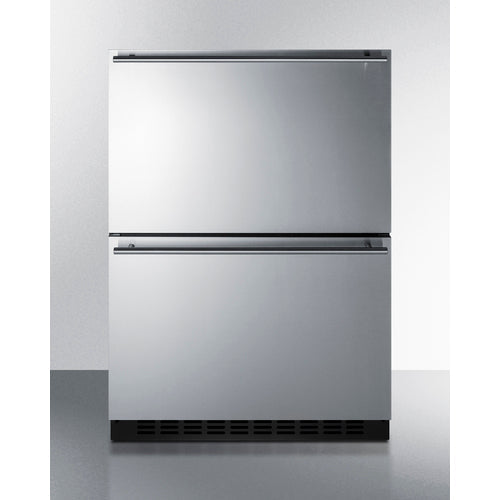

• 24" Wide 2-Drawer Refrigerator-Freezer
  Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer
• Weatherproof design for outdoor use
  Durable construction allows safe installation in outdoor kitchens
• ADA compliant design
  Sized just under 32" high to allow installation under lower ADA compliant counters
• Built-in capable
  Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
• Stainless steel drawers
  Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
• Panel-ready drawer fronts
  Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
• Professional handles
  Sleek stainless steel handles add an elegant touch to any setting
• Frost-free operation
  No-frost operation for minimum user maintenance

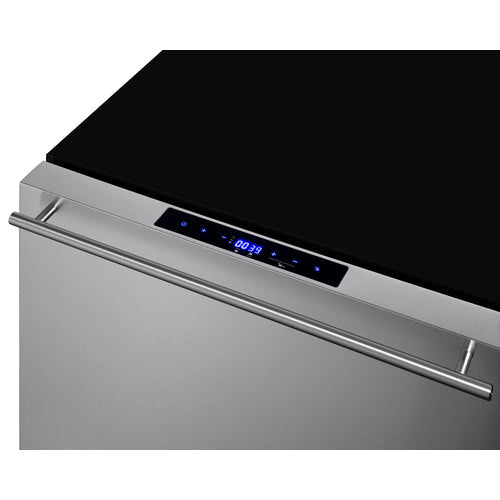

• Digital thermostat
  Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

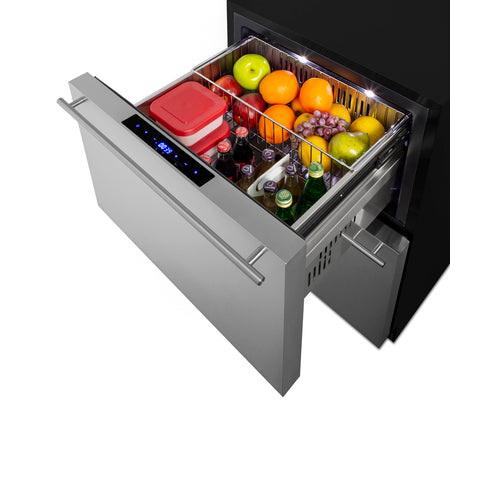

• LED lighting
  Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior
• Internal fan
  Fan-forced cooling ensures the unit is evenly cooled from top to bottom

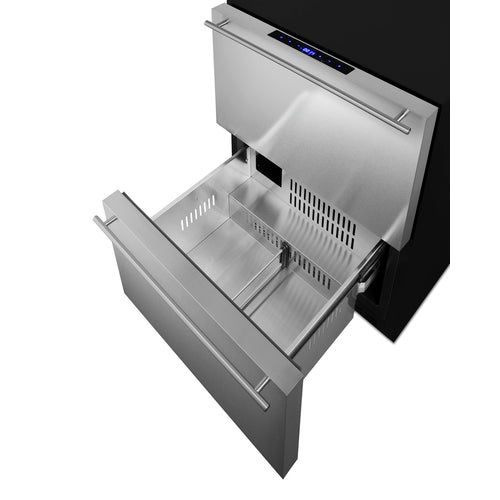

• Drawer dividers
  Two adjustable dividers make it simple to organize the drawer interiors

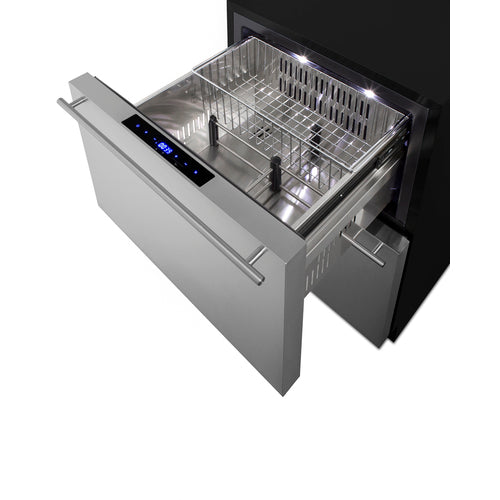

• Sliding basket
  Removable chrome basket included for added storage convenience
• Temperature alarm
  High temperature alarm sounds if the unit's interior goes out of the recommended range
• Open drawer alarm
  Audible alarm will sound if either drawer is left open longer than one minute
• Sabbath Mode
  Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
• Child lock
  Disables digital controls after two minutes of activity for added safety
• Temperature memory function
  Unit will restore the most recent temperature settings after losing power
• Right angle plug
  Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
• Sealed back
  Space-saving design with no exposed coils for easier cleanability and added protection from the elements
• Fully finished black exterior cabinet
  Allows the unit to be used freestanding
• Anti-tip bracket
  Included and recommended for user-installation to reduce the risk of tipping
• Commercially approved
  ETL-S listed to NSF-7 standards to allow use in commercial establishments
• 100% CFC free
  Environmentally friendly design without ozone-damaging chemicals
• CARB Compliant
  Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Specifications

• Capacity: 3.32 cu.ft. (94 L)
• Defrost Type: Frost-Free
• Door: Stainless Steel / Panel-Ready
• Cabinet: Black
• US Electrical Safety: ETL
• Canadian Electrical Safety: ETL-C
• Sanitation: ETL-S
• Energy Usage/Year: 370.0 kWh/year
• Amps: 1.0
• Voltage/Frequency: 115 V AC / 60 Hz
• Weight: 105.0 lbs. (48 kg)
• Parts & Labor Warranty: 1 Year
• Compressor Warranty: 5 Years
• Door Swing: Drawer
• Interior Light: Yes
• Interior Height: 8.0" (20 cm)
• Interior Width: 17.0" (43 cm)
• Interior Depth: 14.5" (37 cm)
• Temperature Range: 36°F to 43°F
• Interior Height: 8.0" (20 cm)
• Interior Width: 17.0" (43 cm)
• Interior Depth: 14.5" (37 cm)
• Temperature Range: -11°F to 11°F
• Thermostat Type: Digital
• Fan Type: Interior
• Refrigerant Type: R600a
• Refrigerant Amount: 1.38 oz.
• High Side PSI: 270.0
• Low Side PSI: 105.0
• Level Legs: 4
• Compressor Step Height: 4.0" (10 cm)
• Compressor Step Width: 17.0" (43 cm)
• Compressor Step Depth: 3.5" (9 cm)
• Sabbath Mode: Yes
• Sound Level: 34.6 dB

Dimensions

• Nominal Height: 32 Inches
• Height of Cabinet: 31 7/8 Inches
• Nominal Width: 24 Inches
• Width: 23 3/8 Inches
• Nominal Depth: 23 Inches
• Depth: 22 1/2 Inches
• Depth with Handle: 23 7/8 Inches
• Depth with Door at 90°: 34 1/4 Inches
