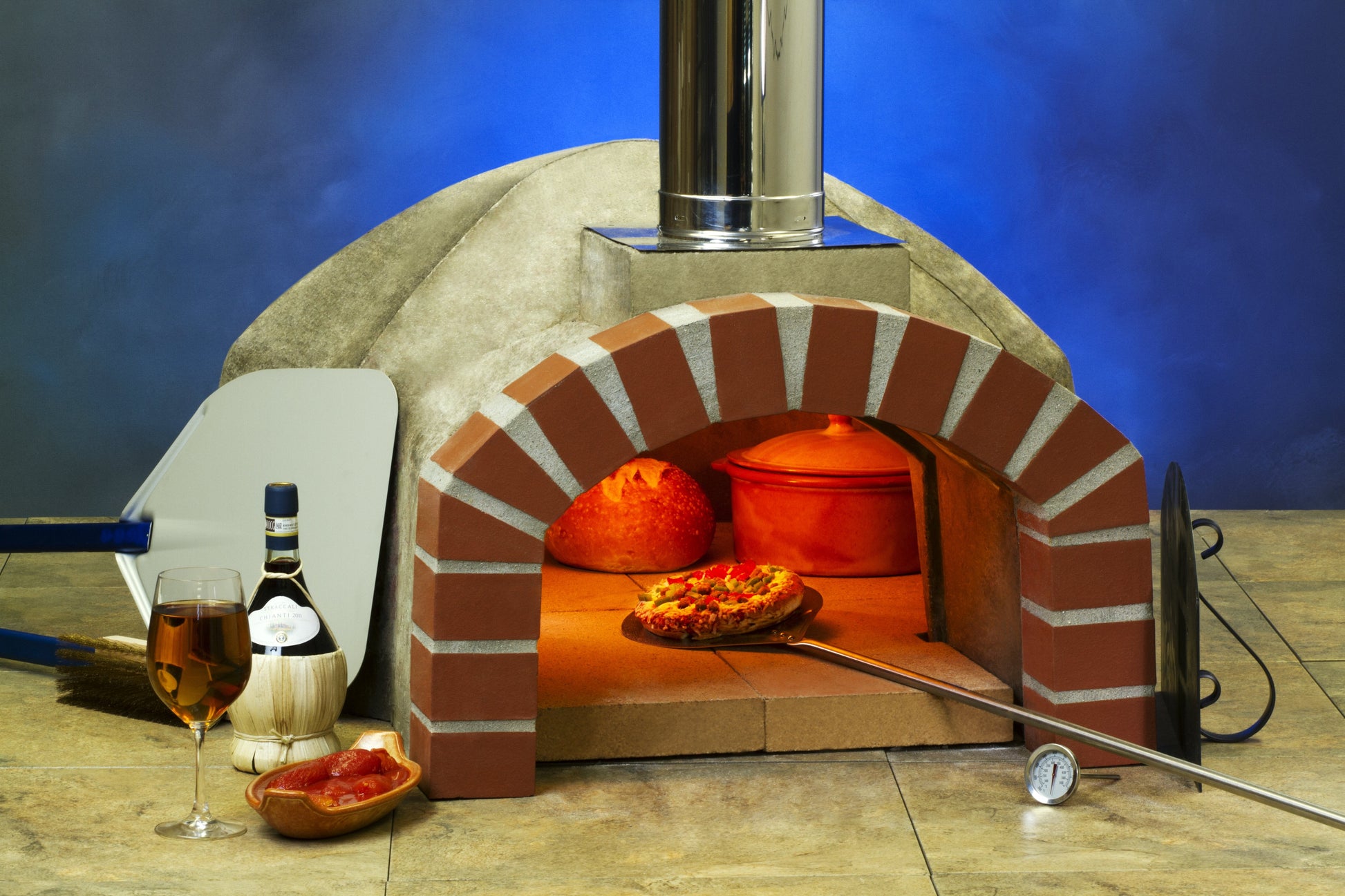

Forno Bravo Casa2G Pizza Oven Kit

The Casa2G home pizza oven kit is UL certified for indoor or outdoor kitchens. This gas or wood fired pizza oven features 30 minute heat up time and outstanding heat retention. The perfect pizza oven engine.

Pizza oven kit includes everything you need to assemble a professional-grade wood fired pizza oven, including refractory dome and vent, firebrick tile cooking floor, 3″ (3 x 1″) ceramic blanket dome insulation, 2″ ceramic board floor insulation, high temp mortar, 6″ x 24″ stainless steel chimney with rain cap, steel door and thermometer.

Oven tools sold separately.

Features

Casa home pizza oven kit includes:

• Commercial grade refractory 2″ oven dome with integral vent;
• Firebrick cooking floor that is NSF-4 certified for use with food;
• 3″ Ceramic fiber insulation blanket and 2″ board to fully insulate pizza oven;
• High temperature mortar;
• Stainless steel stove pipe kit with anchor plate, 24″ flue and cap;
• Steel door with thermometer;
• Optional Cucina stand.

Optional Drago P1+ Outdoor Gas Burner Kit includes:

• Liquid Propane – 51,000 BTUs; Natural Gas – 38,000 BTUs
• Flame control system with pilot, low and high flame settings;
• Stainless steel guard to protect burner;
• Remote thermocouple with wire and gauge;
• Gas leak detector.

Specifications

• Four sizes: 32″, 36″, 40″, and 44″ cooking surfaces; both with an 8″ oven landing;
• You can bake 5 pizzas at a time, or up to 100 per hour;
• ETL certified to UL standards+ for indoor installation as a wood fired pizza oven;
• Wood or gas pizza oven ETL certified to UL standards+  for outdoor installation, no charcoal;
• Easy delivery using a lift gate — no forklift required.

Dimensions

Casa80 Home Pizza Oven Kit – Gas or Wood

• Cooking Surface: 32" x 40"
• Area (sq. in.): 804
• Heat Up (min): 30
• Pizzas (10"): 1-2

Casa90 Home Pizza Oven Kit – Gas or Wood

• Cooking Surface: 36" x 44"
• Area (sq. in.): 1017
• Heat Up (min): 40
• Pizzas (10"): 2-3

Casa100 Home Pizza Oven Kit – Gas or Wood

• Cooking Surface: 40" x 48"
• Area (sq. in.): 1256
• Heat Up (min): 45
• Pizzas (10"): 3-4

Casa110 Home Pizza Oven Kit – Gas or Wood

• Cooking Surface: 44" x 52"
• Area (sq. in.): 1520
• Heat Up (min): 50
• Pizzas (10"): 4-5

Manuals

Casa2G80 Kit

Casa2G90 Kit

Casa2G100 Kit

Casa2G110 Kit

Casa2G Data Sheet

Casa2G Installation and Operation Manual

Single Wall Installation Instruction

Double Wall Chimney Installation Instruction

Forno Bravo Catalog
