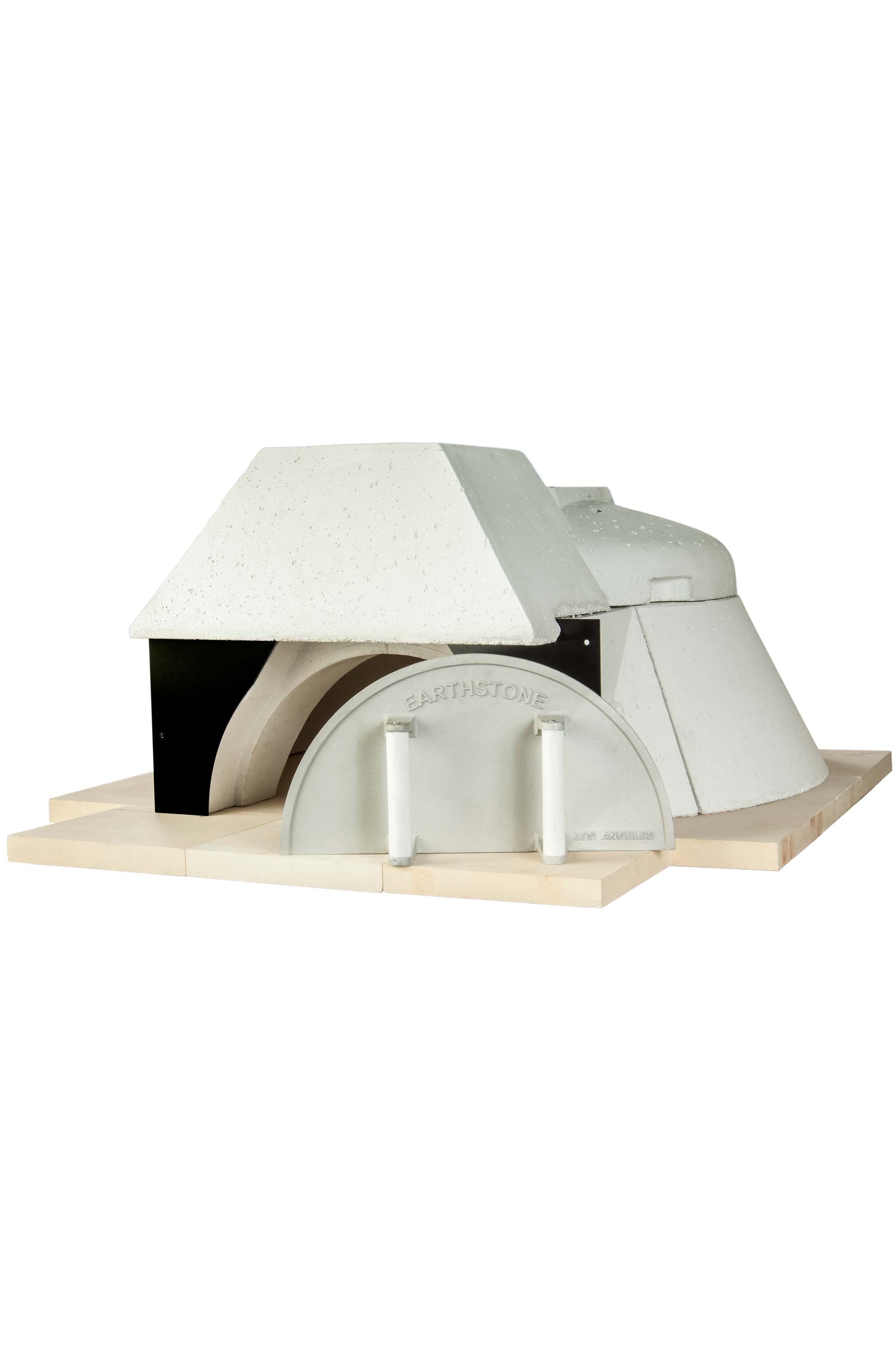

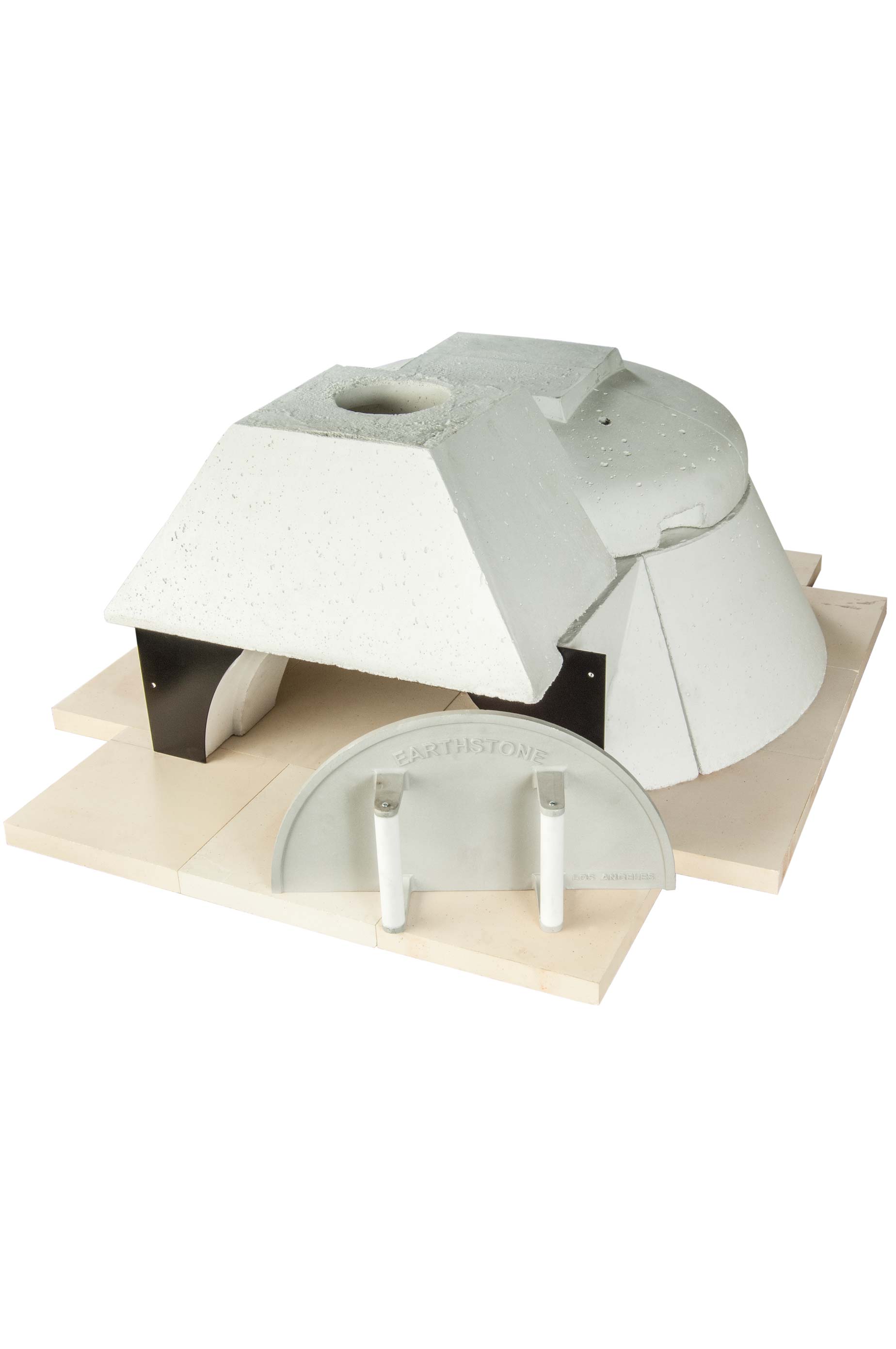

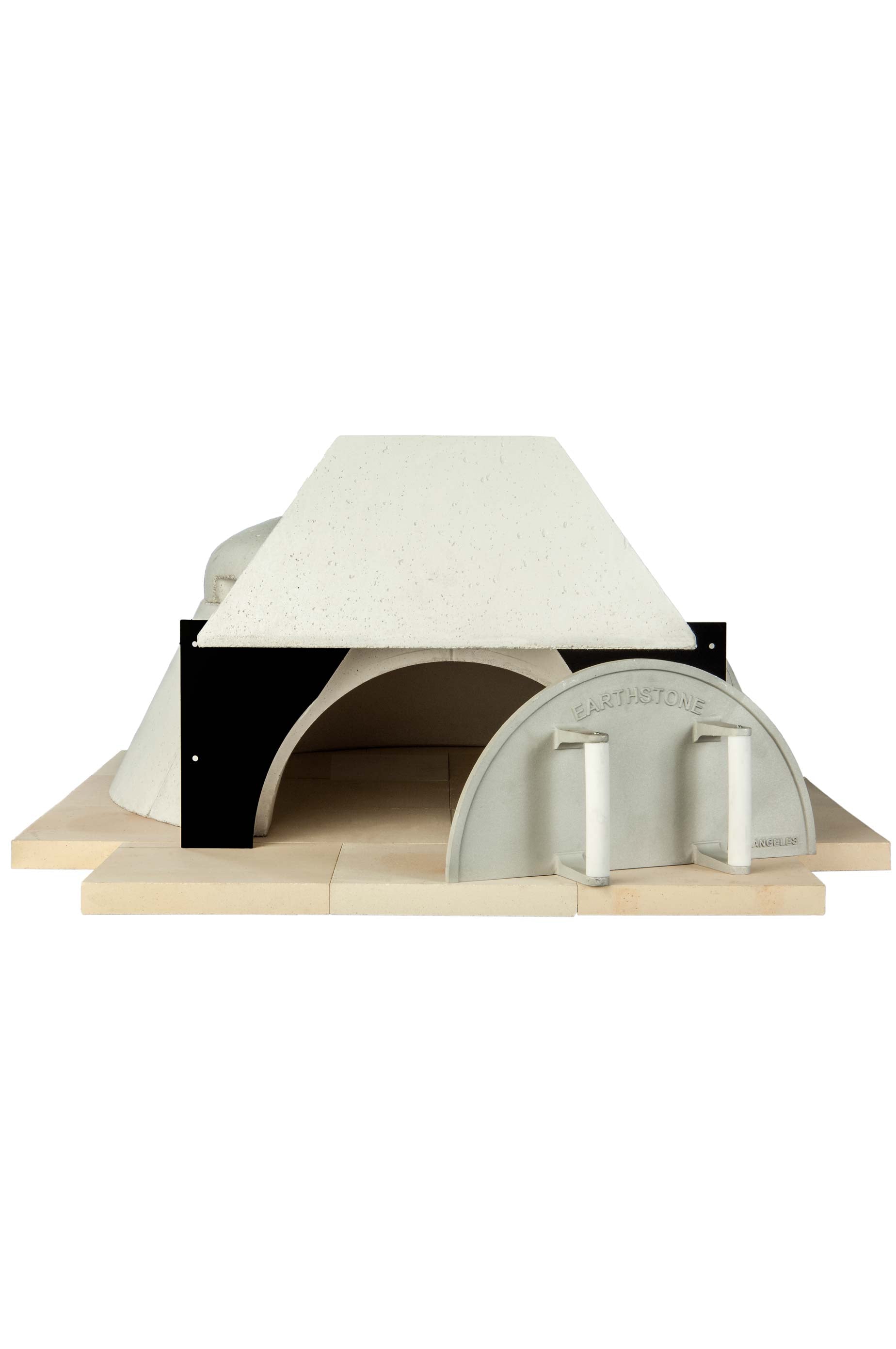

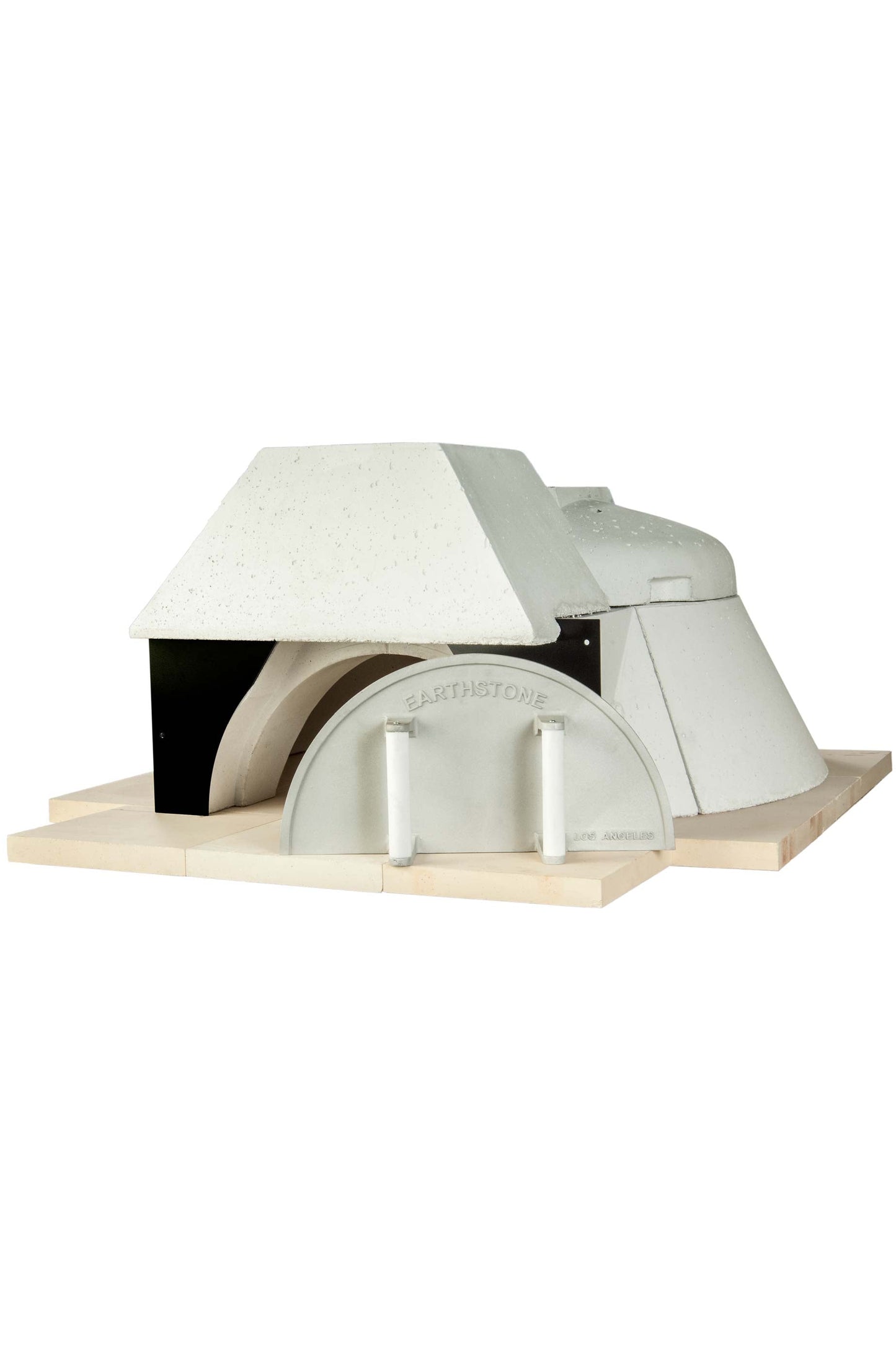

Earthstone Model 90 Modular Wood Fired Countertop Pizza Oven

A pizza oven enables you to cook everything from pizzas to steak, and the Earthstone Model 90 Modular Wood Fire Pizza Oven is a 43.5" W x 53.5" D x 22" H model that weighs 1,200 pounds. With this design, you can bake three or four 8" to 10" pizzas or up to six large steaks on the 17" W x 20" D grilling rack. Equipped with a 4" thick pizza oven wall with refractory elements and a 4.5" thick wood pizza oven floor (12" W x 12" D floor tiles), our Earthstone Ovens are designed to provide you with a top of the line cooking experience – cook meals faster than ever before! Founded by Maurice Sabbagh Yotnegparian, the manufacturer constructs its models proudly in America and offers a five-year limited warranty. Its 35" in diameter wood pizza oven cooking space features 12" W x 12" D industrial bakers hearth tiles, which have been cold pressed at 8,500 psi and ceramitized at 2,800˚F, further aiding in the superior heat retention within these wood burning pizza ovens. The structure is comprised of a primary hood, two dome pieces, three side wall pieces and a front entrance piece. In addition, you will receive the following with your outdoor pizza oven: black steel entrance plate, cast aluminum door with Teflon handles and a dial thermometer (0-1,000˚F range).

Features

• Floor Tiles (18) – 1 – 12″ X 6″, 11 – 12″ X 12″ , 2 – Triangular 12″ X 12″ x 16 1/2″ 2 – Four Sided -12″ X 5″ X12″x 1 1/2″, 2 – Four Sided -10″ X 12″ X 5″ X 13″
• Oven Pieces: Primary Hood, Dome Pieces (2), Side Wall Pieces (3), Front Entrance Piece
• Steel Entrance Plate (black)
• Thick Cast Aluminum Door With Teflon Handles
• Dial Temperature Gauge (Range 0-1000F)
• Refractory Cement (22 lb / 10 kg Bag)
• Galvanized Metal Flashing
• High Heat Silicone Tube
• Plywood Spacers
• Refractory Cement (container)
• Package of Fire Starters
• Stainless Steel Pizza Peel
• 4″ x16″ Screened Vent
• Installation Instructions and Video/DVD

Specifications

Food Capacities:

• 8″ Pizzas: 3-4
• 12″ Pizzas: 2-3
• Eight medium size steaks or six large steaks on 17″ x 20″ grilling rack

Ovens come standard with:

• 4-inch thick advanced refractory elements with superior mass for high thermal resistance.
• 12″X12″ industrial bakers hearth tiles, “Pierre de Boulanger”.
• Includes: Mechanical temperature gauge, Cast aluminum door, Metal entrance plate.
• Oven heats up quickly for low fuel consumption.
• Easy to install — Comes with complete installation video and booklet, operation and maintenance instructions.
• Hood designed to remove smoke & odors efficiently.
• Five year limited warranty.

Dimensions

• Concrete block assembly:
  56 Inches x 48 Inches x 80 Inches (Wt 7,500 lb)
  View Diagram
• Steel frame assembly:
  48 Inches x 44 Inches x 80 Inches (Wt 2,750 lb)
  View Diagram
• Shipping Weight: 1,200 lbs.
• Interior Cooking Area: 35″ in diameter.

Manuals

Earth Stone Specs

Earth Stone Installation Guidelines

Earth Stone Venting Applications
